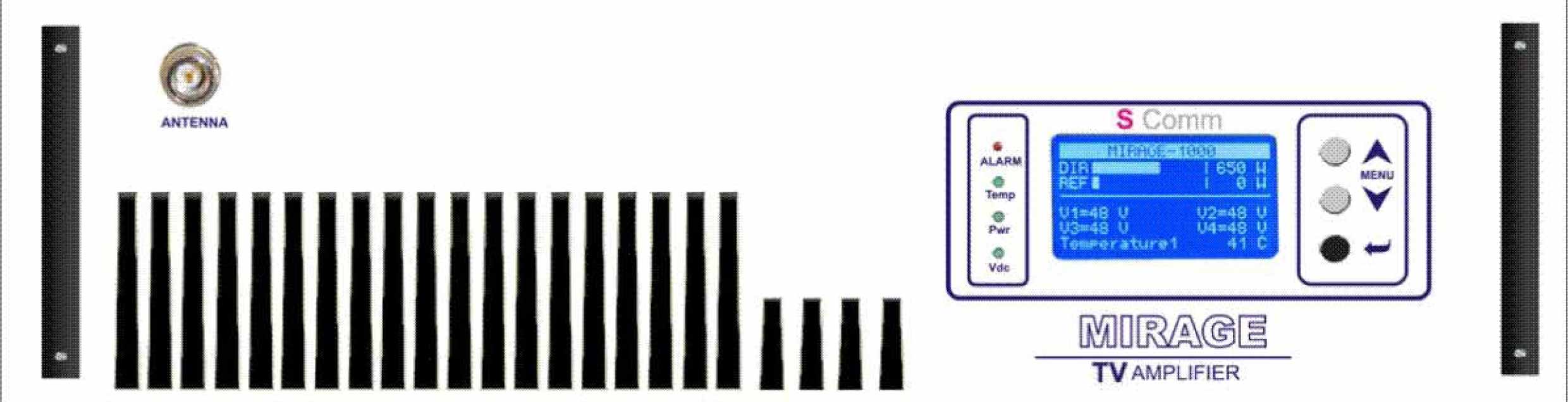

The amplifier MIRAGE T200 is designed to be reliable and well protected with excelent microprocessor metering/protection module. Thanks to the excellent linearity of the amplifiers, achieved with the use of the state-of-the-art LDMOS (UHF) technology, this equipment allow excellent performance both with analog and digital TV signals. The temperature of the amplifier is guaranteed by a forced air cooling system. Efficiency is enhanced by the use of switching-mode powersupplies.
In order to provide attenuation of out-of-band spurious the output filter is always included. A microprocessor monitors and controls the currents and voltages of the power supply together with the measure of DIR / REF power and the temperature of the heat-sink. A multifunction display makes it possible to verify all the operating parameters of the unit.
Key Features
LDMOS Technology for UHF Versions
Forced-air Cooling System
Analog and Digital Signal Input
All voltages and currents available on display
High Efficiency Output Filter included
Output Filter included
RF PARAMETERS
Frequency Range
470 / 860 MHz
Input Power
8-12 W max.
Output Power
220 W at Sync. Peak
Output Filter
Band-Pass Filter with 3 cells and Notch Filter with 2 cells
